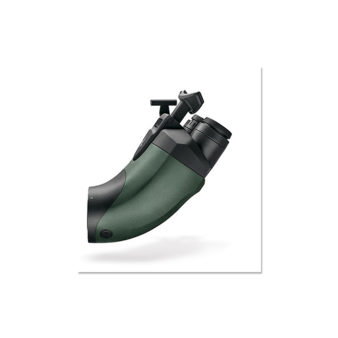

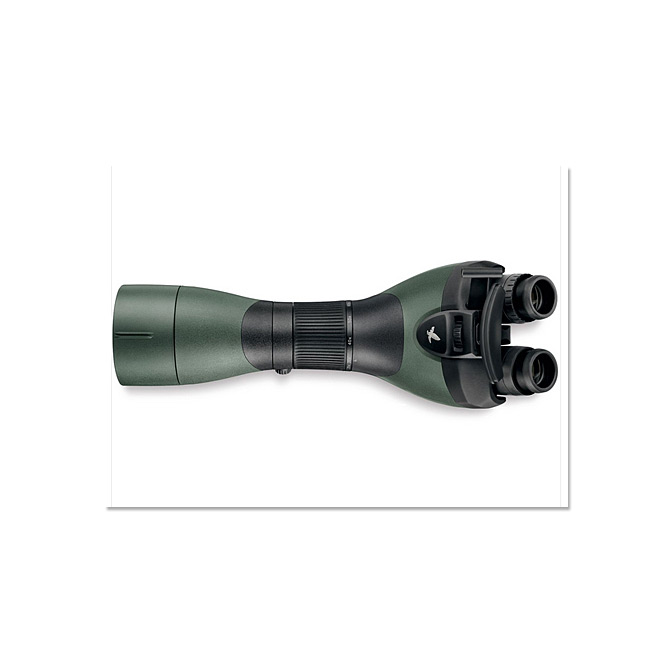

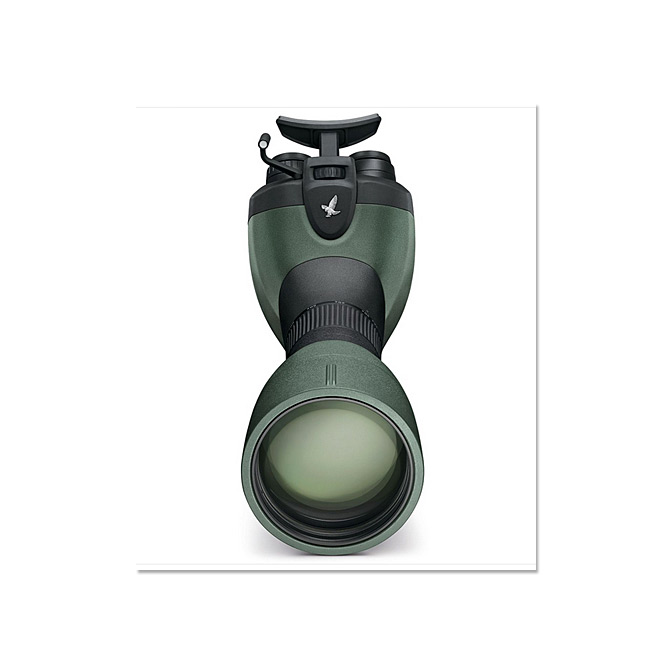

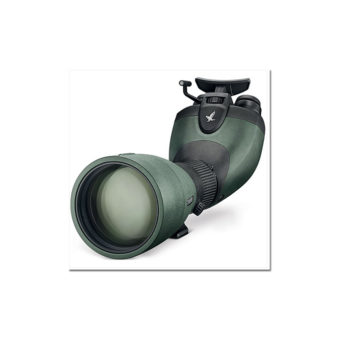

Swarovski BTX 30x 35x Eyepiece Module for ATX or STX Spotting Scope

$3,077.00 $2,769.00

Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes allows one the visual ease of using both eyes for a revolutionary viewing experience. This innovative Swarovski design replaces the conventional single eyepiece with a dual-eyepiece binocular module that enables users to view with both eyes open. The BTX Module gives one the feeling that more is being seen, and crucial subtleties can be seen with crystal clear Swarovski optics.

Description

Magnification: 30x with 65mm or 85mm Spotting Scope Body or 35x with 95mm Spotting Scope Body
Item Weight: 3.1 lbs
Field of View: 65mm Objective: 114' @ 1000 yd / 38 m @ 1000 m, 85mm Objective: 111' @1000 yd / 37 m @ 1000 m, 95mm Objective: 96' @ 1000 yd / 32 m @ 1000 m
Angle of View: 65mm Objective: 2.1°, actual 85mm Objective: 2.1°, actual 96mm Objective: 1.8°, actual
Eye Relief: 21mm
Weatherproofing: Nitrogen-filled Submersible to 13.1' / 4.0 m Fogproof
Operating Temperature: -13 to +131°F (-25 to +55°C)
Storage Temperature: -13 to +131°F (-25 to +55°C)
Close Focus: 65mm Objective: 7.2' / 2.2 m 85mm Objective: 12.5' / 3.8 m 95mm Objective: 16.4' / 5.0 m

The Swarovski BTX 30x 35x Eyepiece Module for ATX or STX Spotting Scope allows one the visual ease of using both eyes for a truly revolutionary viewing experience. This innovative Swarovski design replaces the conventional single eyepiece with a dual-eyepiece binocular module that enables users to view with both eyes open. Fully adjustable Interpupillary distance. The BTX Module gives one the feeling that more is being seen, while critical subtleties can be seen with crystal clear Swarovski optics.

The BTX Module is set at a 45° angle to the optical tube, so your head is put in a natural viewing position. A unique built-in forehead rest and angled view guarantee comfortable viewing for hours on end. The rest can be removed if users find it more comfortable to use without it.

Like the rest of the modules in the ATX/STX family, the Eyepiece Module is nitrogen-filled making it resistant to internal fogging when moving through extreme temperature changes. It is also sealed with an O-ring, making it waterproof and submersible.

Because finding targets through angled eyepieces is sometimes challenging, Swarovski provides an innovative sighting aid. This non-magnified device is placed in front of and to the side of the right eyepiece and is zeroed to the optical tube, so users simply look through the sight hole and center their subject in the reticle.

When mounted on the 65mm and 85mm  it has a 30x magnification. Placed on the 95mm Scope Body, the magnification is 35x. Both models have a 63° wide apparent angle of view. To match the performance of the objective modules, this eyepiece module has the SWAROVISION system to improve color fidelity, contrast, and clarity; and SWAROCLEAN coating. This set up provides vivid, true-to-life images and offers the comfort required for long-term nature observation.

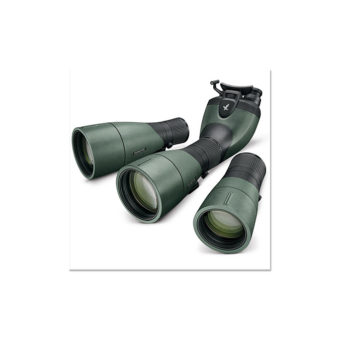

The BTX Eyepiece Module is compatible with all objective lenses in the SWAROVSKI OPTIK ATX/STX range; the 65mm, 85mm and 95mm objective lenses.

Details

  • Two eye-cups and integrated, adjustable headrest
  • Swarovision technology ensures impressive image resolution
  • Removable aiming aid allows quick target acquisition
  • Adjustable interpupillary distance
  • Compatible with ATX and STX lenses

Included

  • Mount Cap
  • One-Piece Eyepiece Cap
  • Limited Lifetime Warranty





Additional information

Weight 7.1 lbs
Dimensions 12 x 8 x 9 in
